Four steps to upgrade existing plant

Vicoma has its head offices in Hoogvliet, Rotterdam, where ninety or so technical staff are employed to work on a range of projects. Around twenty employees form the Piping department and, in this capacity, are regularly involved in 'brownfield' projects, where the owner/operator of a processing plant wants to upgrade some part of their plant.

Peter de Jonge, mechanical manager at Vicoma, explains how they go about this. ''Generally speaking, there are four stages when it comes to making changes to an existing plant. It starts with a feasibility study, since the customer will always want to know whether the investment will provide a profitable return. If the feasibility study comes back with a satisfactory result, it is time to move to the basic study where we map precisely what needs to happen and the timeline for the project. The next step is the detailed engineering, in which our engineers will specify the changes to the plant. Finally, if required, we will also take charge of construction management such that we oversee the contractors and supervise construction of the new parts of the plant.''



Youtube thumbnail

3D scan as reference framework

A common brownfield project they may be asked to conduct is to add a pump and reservoir to a processing plant. Once the work schedule has been produced, the as-built location is initially scanned with a FARO laser scanner. Depending on the visibility lines and the measurements at the site, the required number of scans is produced that will be merged at the Vicoma head office to create an all-encompassing point cloud that gives a complete 3D image of the situation.

The point cloud, that has first been cleaned to remove any unnecessary points, is then imported by the engineers into AutoCAD Plant 3D, following which the designers can specify the models of the pump, the reservoir and associated pipework in the CAD software. The point cloud will not be converted into a CAD model, rather it is used purely as a reference framework for the plant parts being modelled and to identify the existing situation during the review with the customer.

Cadac Group supplies all our Autodesk products, and they advised and assisted us with the migration. We continue to tap into their support.

Peter de Jonge

Mechanical Manager - Vicoma

Youtube thumbnail

AutoCAD Plant 3D

So, all in all, it was a meticulous and time-consuming task, and to keep up the momentum, projects were initiated in AutoCAD Plant 3D at the same time, even before the migration was fully complete. ''We did the migration live,'' said De Jonge.

''When we procured AutoCAD Plant 3D, our engineers were trained in the software by Cadac Group so they could get started straight away. Cadac Group supplies all our Autodesk products, and they advised and assisted us with the migration. We continue to tap into their support, in particular their specialist training courses. These courses provide trainings in using the software within our specific field of operations, making them much more targeted and effective than a general refresher course.''

Read more about AutoCAD

vicoma-3d-model-uitgewerkt-leidingen-1280

Getting started with AutoCAD Plant 3D

Undoubtedly, they had their work cut out with the move from Autoplant to AutoCAD Plant 3D. A complete migration had to take place: the Vicoma engineers had to create a new parts library, the software had to be set up and existing data also had to be transferred.

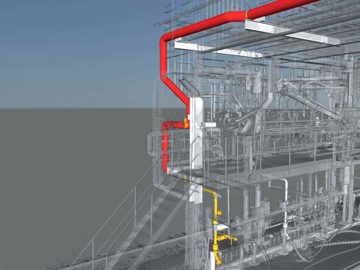

vicoma-3d-model-bestaande-situatie-1280

Successful migration to AutoCAD Plant 3D

Summarising, De Jonge stated that the migration from Autoplant to AutoCAD Plant 3D was completed to their full satisfaction. The migration did not present any insurmountable problems and the software is performing well. ''Our engineers have access to the functionality they need, enabling them to successfully implement our projects.''

We made a conscious decision to choose this package for a specific price:quality ratio

''There are still one or two things we don't have that would be nice to acquire, but some of these are related to the price bracket of the software we went for. More expensive, high-end packages have the option to do clash checks for example, but there is no functionality to do this in AutoCAD Plant 3D.

As mentioned, we made a conscious decision to choose this package for a specific price:quality ratio and we knew it didn't have this feature. We found a workaround by performing the checks using NavisWorks and that also works fine. However, if the software developers decide to add the functionality for clash checks to the software, we would of course welcome that.''

More about AutoCAD

Will our approach work for you too?

We are here to help you.
