How to setup TheModus Professional so it does not make use of UOL content when generating Fitting solutions?
Last modified on: 25 November 2021
Problem:

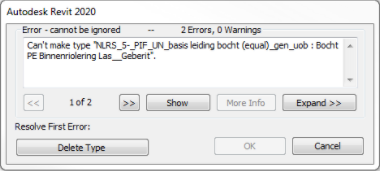

When generating a Fitting Solution (Elbow, T and so on) An error message related to not being able to make a family/Familt-type "Can't make type "NLRS_<familyname>:<type name>" is shown."
Cause:
Default TheModus Professional is set to make use of available fitting from UOL to generate the fitting solution.
This function requires a 2BA subscription/license.
If the 2BA subscription/license is not available make following changes to TheModus:
Solution:
- Start Revit 20xx

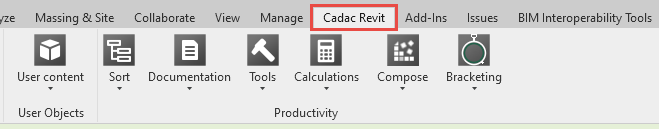

- Activate the 'Cadac Revit' Ribbontab
- Click 'General ▼'
- In the fold-menu choose 'Settings'

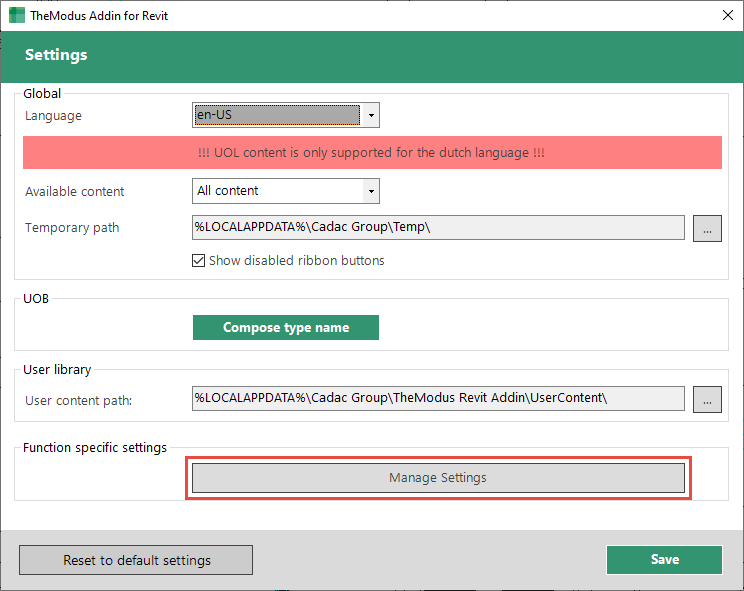

- Click [ Manage Settings ]

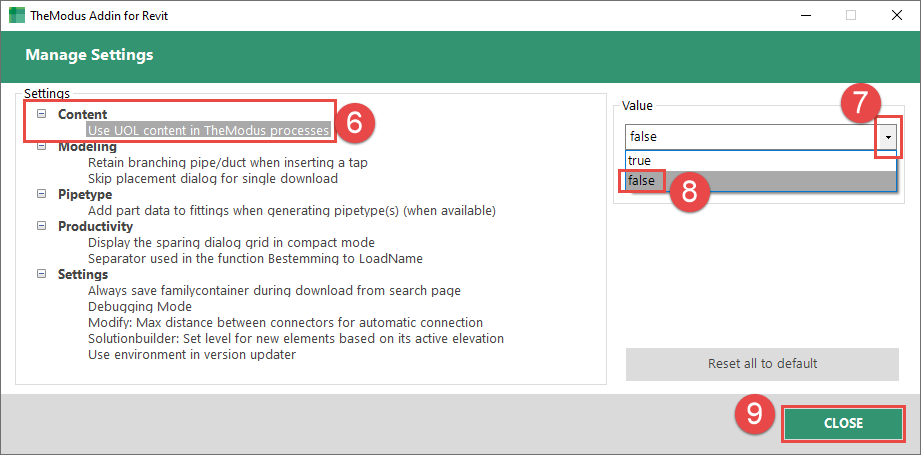

- Select the line "Use UOL content in TheModus processes"
- Click [ ▼ ] in the field 'Value'
- Select the value 'false'
- Click [ CLOSE ]

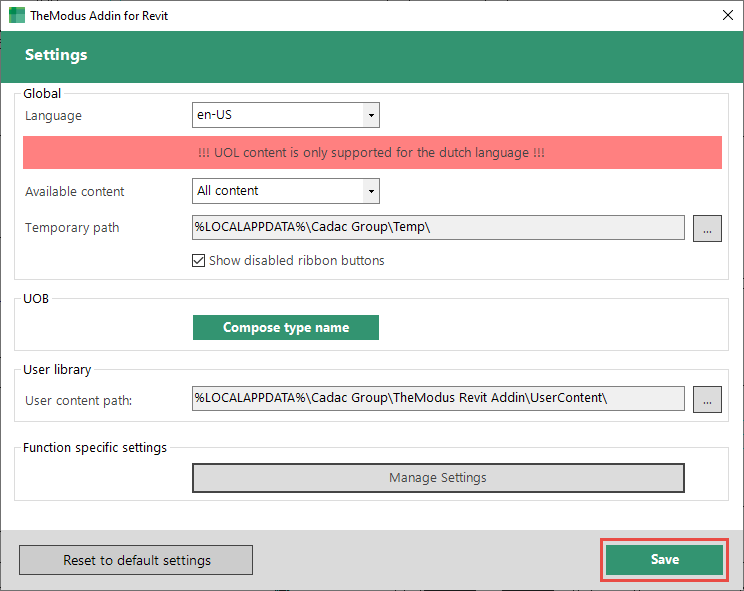

- Click [ Save ]
Generating Fitting Solutions will now only use TheModus families.
