What to do when Licht en Kracht LT does not generate my Schema?


Laatst gewijzigd op: 8 August 2023

Problem:

After the schema is built with supply and groups Licht en Kracht LT 7.11.2 does not generate the Schema in AutoCAD 2023, the drawing remains empty.
It works fine for AutoCAD LT 2024


Solution:

For the correct collaboration between Licht en Kracht LT 7 and AutoCAD LT 2023 the is a bugfix version for Licht en Kracht available. This is the LT 7.11.3 version (Only for Licht en Kracht.)

Download the attachmeny: LK 7.11.3.zip

Unzip the "LK 7.11.3.zip". (This contains the NOR-Lkr.exe)

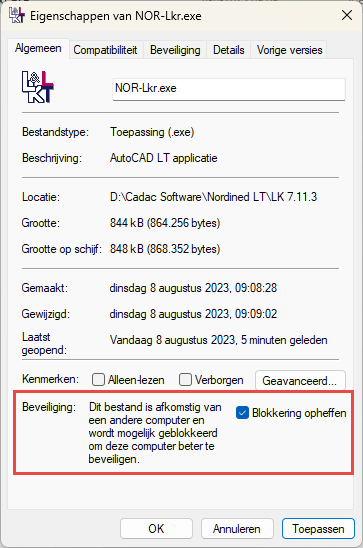

After unzip select and give a rigth mouse button click on the "Nor-Lkr.exe" and choose "Eigenschappen"/"Properties"

Activate the option "Blokkering opheffen":

Click [ Toepassen ] / [ Aplly ]


Move the "NOR-Lkr.exe" to the "C:\Program Files (x86)\Cadac Group\LT 7\LKLT" folder

The current "NOR-Lkr.exe" can be overwritten.


With this bugfix version the schema generation will function again (for AutoCAD LT 2023).
